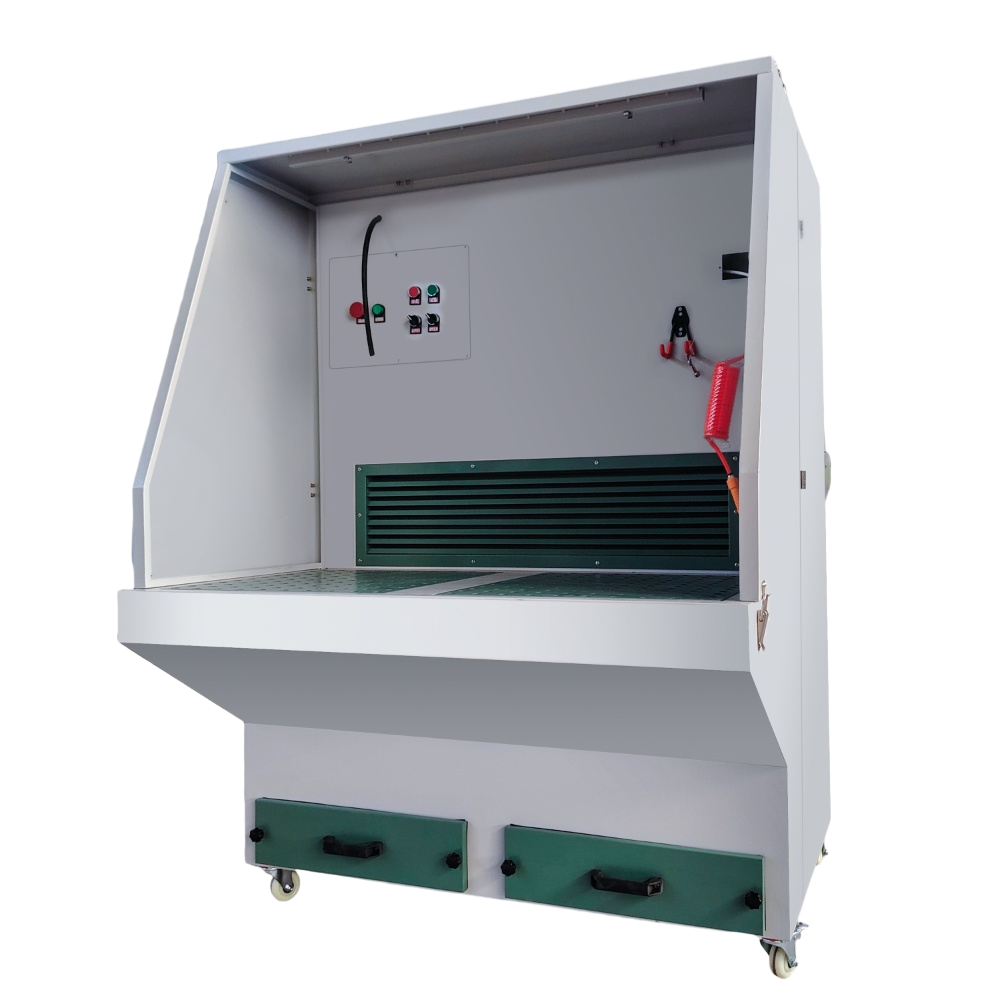

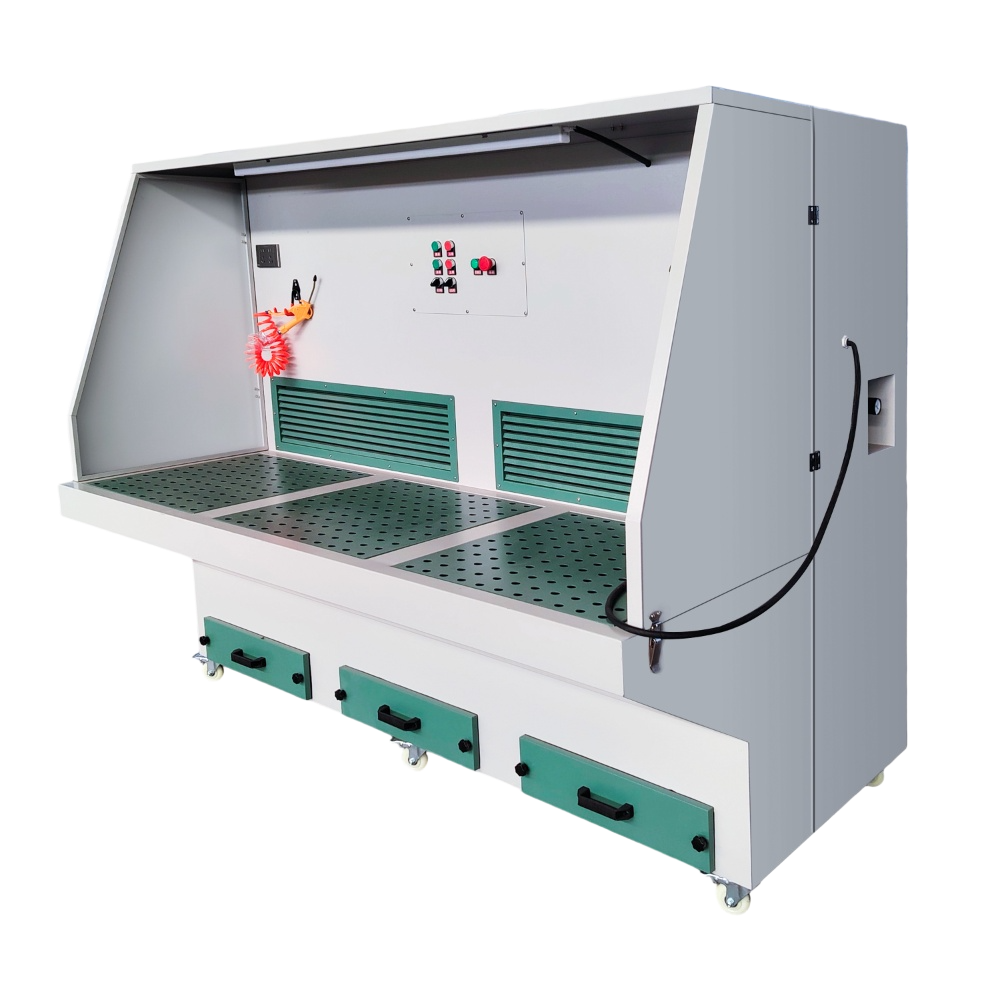

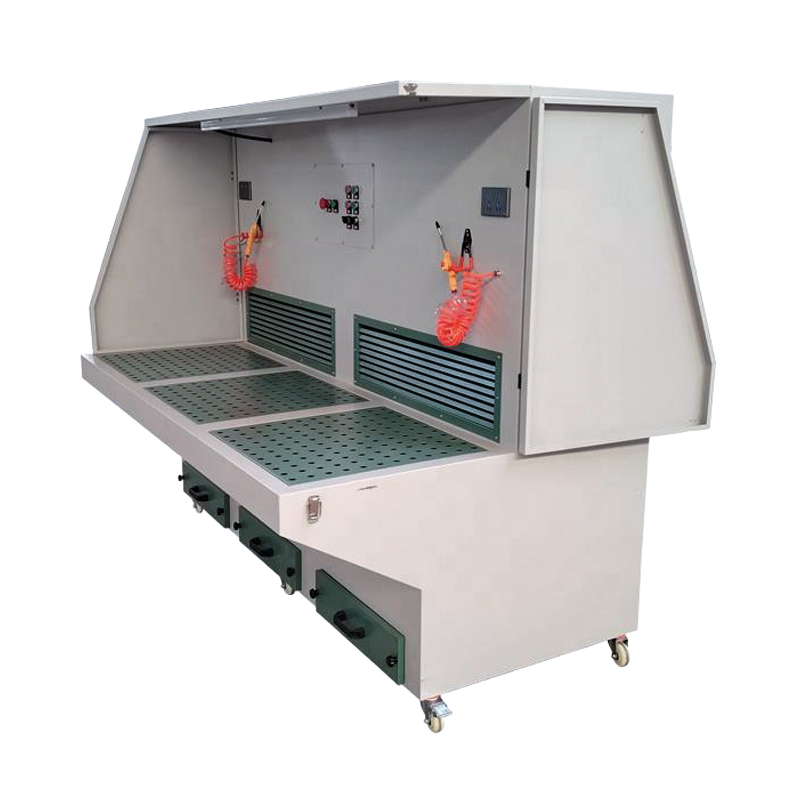

Dust removal and grinding platform QD-DM2000
+Efficient dust removal system
+Filter element backwash self-cleaning
+Modular structure design
+ Low noise operation
+Strong wear-resistant countertop
+Environmentally friendly design
+Complete security protection
Dust removal and grinding platform QD-DM2000
+Efficient dust removal system
+Filter element backwash self-cleaning
+Modular structure design
+ Low noise operation
+Strong wear-resistant countertop
+Environmentally friendly design
+Complete security protection
Machine
/ Technical parameters
Product Features
1. High-efficiency dust removal system: built-in high-efficiency dust removal device, effectively absorbs dust generated during grinding, keeps the working environment clean, and improves workers' health protection.
2. Filter element back-blowing self-cleaning: equipped with pulse back-blowing solenoid valve, after connecting to external compressed air, the filter element can be back-blown and self-cleaned to prevent the filter element from being covered by dust and losing its filtering and suction effects
3. Modular structure design: the platform structure is flexible, and the size and configuration can be customized according to the customer's on-site space and process requirements, which is convenient for installation and maintenance.
4. Low-noise operation: noise reduction fans and sound insulation design are used to reduce operating noise and create a more comfortable production environment.
5. Strong wear-resistant table: the work surface is made of fire-proof, anti-corrosion and wear-resistant materials, which are suitable for the grinding needs of various metals, woods, plastics and other materials.
6. Environmental protection standard design: high dust removal efficiency, in line with national industrial environmental protection standards.
7. Perfect safety protection: equipped with electrical overload protection, leakage protection, short circuit protection and other safety functions to ensure the safety of equipment and operators.
8. Due to different voltages and frequencies used in different countries or regions, please inform us of detailed requirements when consulting customer service so that we can accurately configure equipment accessories
9. This configuration sheet is a general setting. If you need special requirements such as explosion-proof, fireproof, high temperature, etc., please let us know
Product Reference
| Dust removal and grinding platform QD-DM2000H | |
| Machine size | 2000*1200*1600 |
| Fan power | DF2.2-2P KW |
| Air volume | (3400*4100)*2m3/h |
| Wind pressure | 1720-1580Pa |
| Cartridge size | 325*500mm |
| Number of filter elements | 4 |
| Self-cleaning | 4 Pulse valve |
| Plate thickness | 1.4/1.8mm |
| weight | 295kg |
| Remark | Fan rear |
| Dust removal and grinding platform QD-DM2000X | |
| Machine size | 2000*1200*1600 |
| Fan power | 4-72-3.6A4.0KW |
| Air volume | 2864-5468m3/h |
| Wind pressure | 1578-989Pa |
| Cartridge size | 325*500mm |
| Number of filter elements | 4 |
| Self-cleaning | 4 Pulse valve |
| Plate thickness | 1.4/1.8mm |
| weight | 295kg |
| Remark | Fan down |
